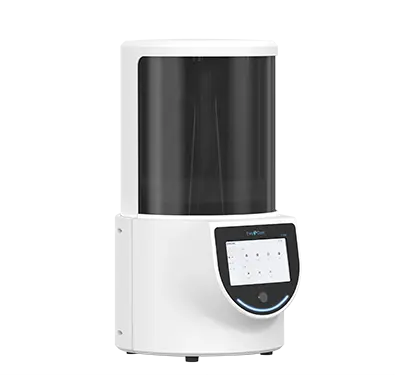

UOne is a desktop DLP 3D printer designed specifically for dental clinics and small laboratories. It has a 2K resolution, ensuring a large-format coupled with high precision, reaching up to 56 microns. UOne is equipped to handle a comprehensive array of dental scenarios and is accompanied by a complete selection of resin materials.
| Build Volume | 143 x 80 x 80 mm 5.63 × 3.15 × 3. in |
| Accuracy | ±0.028 mm |
Pixel Size | 56 μm |
| Resolution | 2560 × 1440 HD |
| Wavelength | 405 nm |
| Projection Mode | Bottom-up Projection |
| Controlling Software | UnionTech™ DSCON |
| Data Preparation Software | Polydevs |
| Operation System | Windows 10 |
| Network Type and Protocol | USB, WiFi, Ethernet Using MQTT, HTTP, TCP, UDP, FTP |
| Electrical Requirements | 200-240 VAC, 50/60 Hz |
| Rated Power | 800W |
| Systems Control | Closed-loop |
| Temperature Range | 72–79 °F (22–26 °C) |
| Maximum Change Rate | 1 °C/hour |
| Relative Humidity | < 40% |
| Machine Size (W x D x H) | 425 × 410 × 715 mm |
| Machine Weight | 23 kg |
| Resin Vat | Replaceable Film |
| Processing and Finishing | Post-Curing Unit (optional) |
| Warranty | 12 Months |
Consult with your sales representative for confirmation of current offering.
