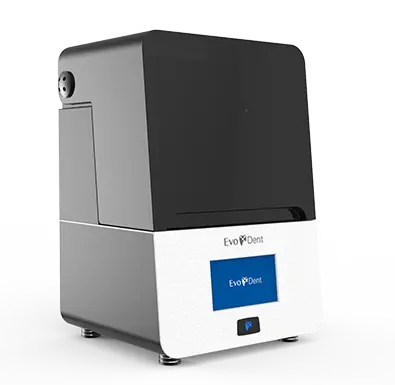

The E230 is a 3D printer designed for dental applications, featuring a remarkably high 8K resolution LCD. This elevated resolution of the light source contributes to an expansive build size while maintaining an exceptional accuracy of 30 microns. The E230 is particularly well-suited for precision-demanding dental models, such as restoration models and dentures, making it an ideal choice for these applications.
| Build Volume | 219 × 124 × 190 mm ( 8.6 × 4.9 × 7.5 in ) |
| Pixel Size | 30um |
| Printing Speed | 20-100 mm/h |
| Layer Thickness | 0.02-0.2 mm |
| Exposure Screen | UV LED with 10″ Monochrome 8K LCD |
| Resolution | 7680 × 4320 |
| Wavelength | 405nm |
| Control Panel | 7″ LCD Touch Screen |
Software | EvoDent ONE |
Machine Dimensions | 414 × 360 × 582 mm 16.30 x 14.17 x 22.87 in |
| Machine Weight | 27 kg |
| Rated Power | 170 W |
Consult with your sales representative for confirmation of current offering.
